Anti Collapse Metal Mesh

Anti Collapse Metal Mesh: Reinforced zinc-coated mesh with 3.0mm thick wires and 25x25mm frame. protecting racks from cladding. Customizable mesh size to fit for various rack systems. Essential for industrial and cold storage safety.

Product Description

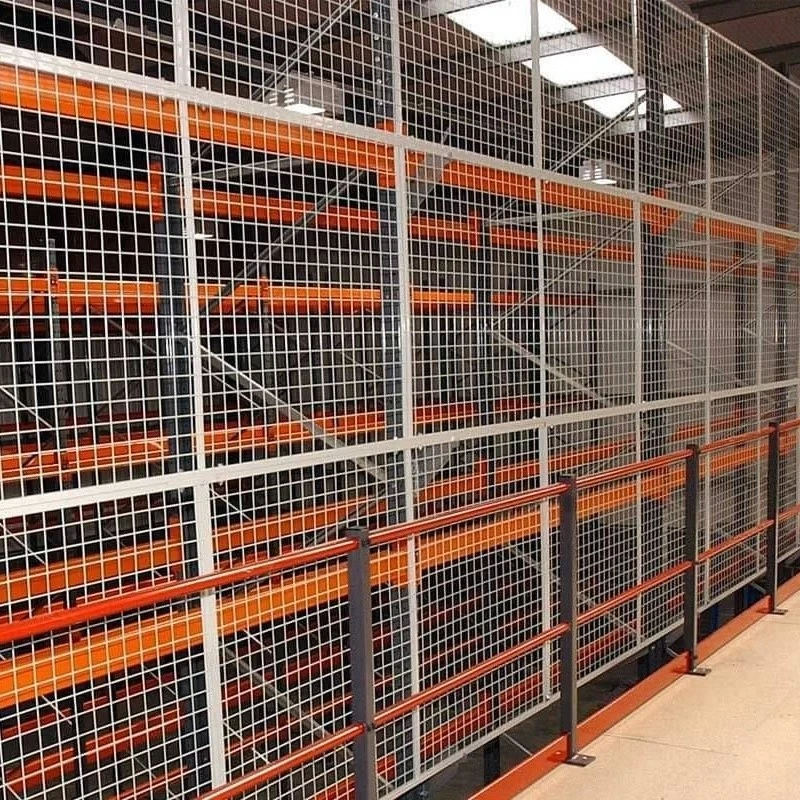

Anti Collapse Metal Mesh is also called back mesh or safety netting,is bolted to the end of your warehouse racking and shelving to prevent any falling items, is a great fencing to protect workers or operators against machinery or hazardous materials .
We make anti-collapse mesh both in galvanized and powder coating , any color will do .

product-1644-1644

Which racking or shelving require Anti-Collapse Mesh?



1. Racking or shelving > 3m Tall, especially high-bay pallet racking,mezzanine floors must install back mesh and side barriers to prevent high falls.
2. Shelving storing small items,like spare parts, hardware , and small boxes
3. For frequent movement warehouse , Aisles with frequent personnel or forklift traffic,should set up fencing between racking and aisles, to stop objects dropping.
4. Cantilever racking to store long material ,it's better to install anti-collapse mesh .
5. Cold room and Chemical Warehouses
6. Area with regulations mandate fall prevention measures.



Production process



product-1200-768



FAQ



Q: Can I customize size of anti-collapse mesh ?

A: Yes, you can design size based on warehouse layout and needs.

Q: How is the anti-collapse mesh fixed to my pallet racking systems?

A: Common methods: (1)Clip-on: Slides into pre-drilled slots on rack posts/beams (quick installation);(2)Welded: Permanent and ultra-secure (but harder to adjust later),(3)Screw-mounted: Bolts the mesh frame to the rack (suitable for heavy-duty mesh).

Q: Does anti-collapse mesh affect goods access ?

A: No, it's install at the rear of shelving and racking, covering only the gaps between racks /wall , without interfering with normal picking and loading.

Q: Does mesh hole size matters ?

A: Yes, it depends on the goods you are storing:
Small items (such as screws, tiny things), use 50x50mm hole to prevent drops.
lager items, use 100x100mm or 50x100mm, 25x100mm .

Q: Does the wire thickness impact the performance ?

A: Thicker wires offer greater loading capacity and resistance.



Hot Tags: anti collapse metal mesh, China anti collapse metal mesh manufacturers, suppliers, factory, welded wire mesh partitions, wire mesh partitions, cladding insect mesh, anti collapse mesh for racking, pallet rack bay dividers, pallet rack shelf dividers
