Zinc Coated Wire Decking

Zinc Coated Wire Decking converts pallet racking beam levels into load-rated surfaces. Each panel fits standard Australian beam widths and is rated 1,000 kg UDL. The zinc coating suits humid or unheated sites, and FTB support locks the panel onto the step beam.

Send Inquiry

Product Overview

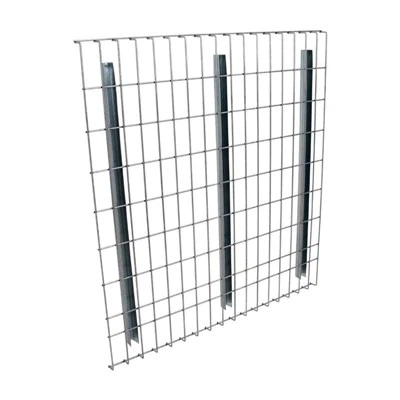

Our Zinc Coated Wire Decking is a drop-in steel wire panel that converts pallet racking beam levels into load-rated storage surfaces. The wire is coated with a zinc finish, giving a UDL rated wire decking surface that resists rust in humid or unheated warehouses without the cost of hot-dipped galvanizing. Integrated FTB support (Full Tension Beam support) locks the panel onto the step beam so the load spreads evenly across the beam rather than hanging on the mesh, which stops the panel walking out of position when a forklift sets a pallet down. The open mesh keeps the sprinkler path clear, lets air move through the rack and stops dust collecting, while the zinc coating is available as a galvanized finish wire or pre-galvanized steel depending on the atmosphere on site. Standard panels are built to common Australian beam and frame dimensions, from a 915 mm deep wire deck for narrow frames up to a 1,525 mm deep wire mesh for deep double-deep bays, with matching widths such as a 610 mm wide wire deck, a 1,170 mm wide wire deck and a 1,320 mm wide wire mesh.

Technical Specifications

The panels below cover the standard beam and frame widths used in Australian pallet racking. Every size is rated as a static load wire deck at UDL (uniformly distributed load), from a 680 kg capacity deck for light carton storage through a 900 kg capacity deck and a 1,135 kg capacity deck to a 1,360 kg capacity deck, and up to a 1,815 kg heavy duty deck for dense palletised goods. If your bay is longer than the sizes listed, a 1,065 mm deep wire deck, a 1,220 mm deep wire deck, a 1,475 mm wide wire deck or a 1,525 mm deep wire mesh panel can be made to order:

Size L x W (mm)	Wire Gauge	Mesh	Load Capacity (UDL)
1250 × 840 mm	5.0	50 × 100 mm	1,000 kg
1350 × 840 mm	5.0	50 × 100 mm	1,000 kg
1350 × 1219 mm	5.0	50 × 100 mm	1,000 kg
1250 × 1219 mm	5.0	50 × 100 mm	1,000 kg

FAQ (Frequently Asked Questions)

Q1: What role does FTB support play in this zinc coated wire decking for pallet racking?

A: FTB support (Full Tension Beam support) creates a tight, stable fit between the wire decking and the step beam. The load is then carried across the full beam span instead of concentrating under each pallet foot, which is what a point load wire mesh has to resist on its own. Fitting the panel this way also stops it shifting when a forklift sets a pallet down.

Q2: Will these sizes work with standard Australian pallet racking systems?

A: Yes. The four standard sizes match the beam and frame widths most Australian warehouses use, and FTB support engages the step beam directly, so no extra brackets or fixings are needed. Send us your beam length and frame depth and we will confirm the closest standard panel or quote a Custom width wire mesh panel.

Q3: What load can the zinc coated wire decking handle?

A: Every standard panel in the table above is rated at 1,000 kg as a uniformly distributed load (UDL), which is the figure to use when pallets are placed on it. If your load is concentrated on a small footprint rather than spread across the panel, tell us the pallet weight and footprint and we will confirm the right wire gauge before you order.

Q4: Is the zinc coating durable enough for Australia's coastal conditions?

A: The zinc coating is intended for indoor and unheated warehouses, including humid coastal sites. If you need a heavier coating for an outdoor yard, a wash-down area or a food plant, say so when you enquire and we will quote hot dipped galvanized or pre-galvanized steel instead. Coating thickness and finish are confirmed against your drawings before production.

Q5: Does installation require special tools?

A: No. The panel drops straight onto the step beam and the FTB support holds it in place, so no bolts, clips or drilling are required. Two people can set a full run of beam levels by hand during a rack installation or a decking upgrade.

Contact Us

If you have questions about our Zinc Coated Wire Decking, need a custom size quote, or want help checking which wire gauge suits your pallet loads, our team is here to help:
📞 Phone: [+86-18250837639]
📧 Email: sales@safetyshelves.com
🌐 Website: www.safetyshelves.com
👉 Click to Request a Free Quote | Download Spec Sheet | Get a Free Sample
