Heavy Duty Drive in Storage Racks

Heavy Duty Drive In Storage Racks: a high-density pallet system for bulk, uniform loads, built around your pallet size, truck reach and building height. Forklifts travel inside the lanes, so floor space goes into pallet positions rather than aisles.

Product Description



Heavy Duty Drive In Storage Racks are built as a block of lanes rather than rows of single-deep bays. A forklift enters the lane at floor level and travels inside the frame to place or pick a pallet, so one entry aisle serves the whole block instead of an aisle every two rows. Pallets are retrieved last in, first out, which suits bulk stock held in one uniform pallet size. Where first-in, first-out rotation is needed, the same frame is built as a drive-through lane open at both ends. Lane depth, entry height and rail spacing are set by the pallet and by the truck that will work the system.



Numbered diagram of heavy duty drive in storage racking components



Structure Components



Upright Frame

Steel columns in 90×70 mm or 100×70 mm sections, carrying the full lane load down to the floor.

Top Beam

Connects the upright frames across the top of each lane and ties the block together.

Top Bracing

Horizontal bracing that keeps the frames square at the top of the lane.

Pallet Rail

The rail each pallet sits on; its section and span set the load per pallet position.

Support Arm

Carries the pallet rail and spreads the load into the upright.

Guide Rail

Floor-level rail that keeps the forklift aligned as it enters the lane.

Upright Protector

Steel guard at the entry that takes forklift impact away from the upright.

Backing Bracing

Diagonal and horizontal bracing at the rear of the block for lateral stability.



Why Choose Heavy Duty Drive In Storage Racks?



Floor area. With no intermediate aisles, the same building footprint holds around 40% more pallet positions than selective racking; the exact gain depends on the layout.
Load per pallet. Heavy duty drive in storage racks carry 800–1,200 kg at each rail position.
Rating basis. The final figure is set by the rail span, beam section and level height agreed at design stage.
Lane depth matched to your pallet. Lanes are built 4–10 pallets deep to suit pallet size, load and truck reach.
Support after delivery. Spare rails, guides and protectors, extra levels and longer lanes can all be supplied to match the original design.



Projects

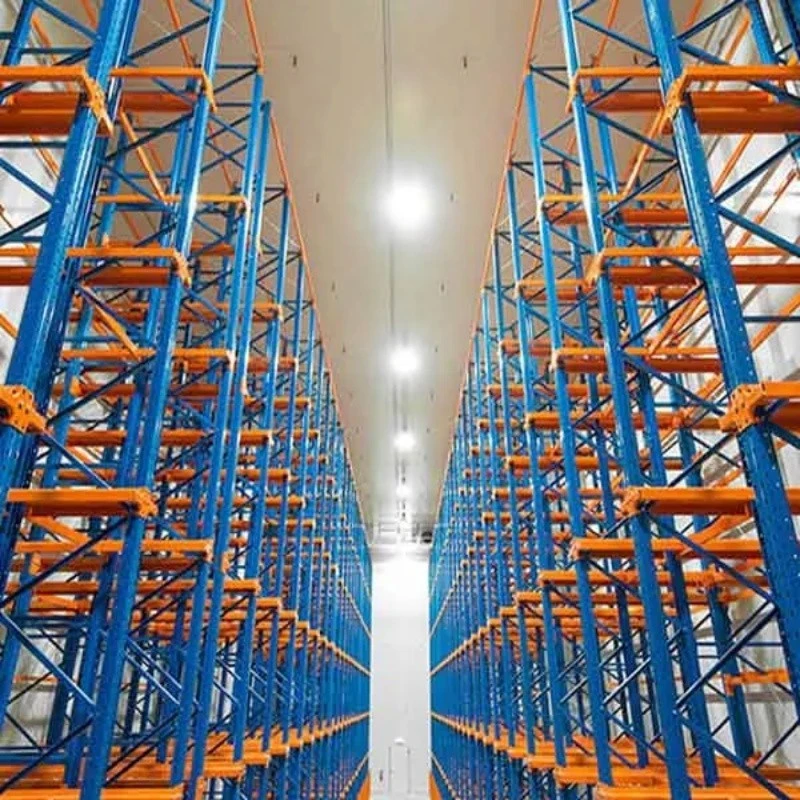

Drive-in racking block installed in a warehouse with upright protectors

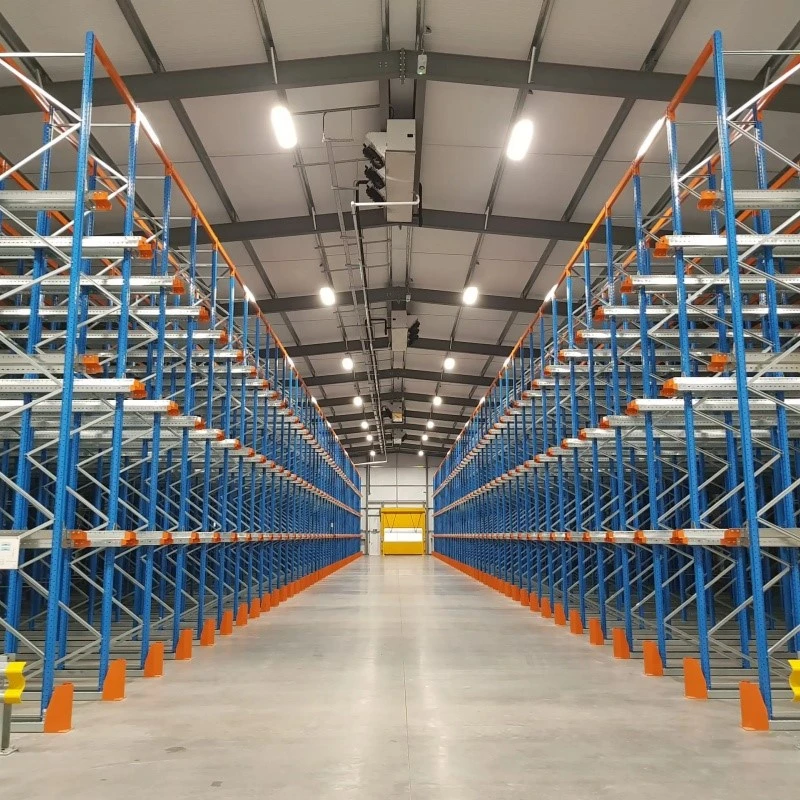

Empty drive-in racking lanes and guide rails seen from the entry aisle
Drive-in racking lanes loaded with cartons on pallets



Production Process

Uprights and rails for heavy duty drive in storage racks are roll-formed and punched on the same line, then welded into frames and checked for square. Every batch passes through the coating line before it is inspected against the project drawing and released for packing.

Stamping presses on the racking production line
Roll forming line with steel coil in the racking workshop
Coated racking beams hanging on the powder coating line



Package



Stacked plastic crates shrink wrapped on pallets in the warehouse
Cartons and shrink wrapped loads secured inside a shipping container
Packed loads strapped on pallets staged for container loading



FAQ



Q: What steel grade do you use on heavy duty drive in storage racks?

A: Uprights and beams are cold-rolled Q235-B steel. Powder coating is standard; hot-dip galvanising is available for high-humidity or outdoor installations.

Q: Can you design the racking around my warehouse?

A: Yes. We issue a layout drawing, load table and accessory list for confirmation before production starts.

Q: What pallet sizes can the system handle?

A: Standard 1200×1200, 1200×1000, 1000×800 and 1200×800 mm pallets, or a custom footprint to match your own pallet.

Q: How quickly can you quote?

A: Usually within 3–5 working days of receiving the pallet size and weight and your building dimensions.

Q: What is the production lead time?

A: 30–35 days for production once the design is confirmed.

Q: Can the system be used in a cold store?

A: Yes. Cold stores are a common application for drive-in racking, and the frame is specified for low-temperature operation.
