Very Narrow Aisle Racking

Very Narrow Aisle Racking that turns aisle space into pallet positions: aisles from 1.6m against 3.5-4.5m for selective, served by a rail-guided VNA truck, with racking to 12-15m in a high building. Every pallet stays directly accessible. Aisle width, rack height and load rating are engineered per project.

Product Description



Very Narrow Aisle Racking is the highest-density form of pallet racking we build. Instead of setting aisles wide enough for a conventional counterbalance or reach truck, the layout is sized around a guided very narrow aisle truck that works inside the aisle. That single change is what lets a building hold more pallet positions without adding floor area. The rack itself is the simple part; the aisle is what needs engineering. Aisle width, rail position, floor flatness and rack height are set together, from the truck you run and the pallets you store. That is why we quote this product from a site drawing rather than from a stock size list.



Key Features of VNA Pallet Racking



1. Aisle width from 1.6-2.0m. A very narrow aisle racking layout runs on aisles of 1.6-2.0m, against the 3.5-4.5m a selective pallet racking aisle needs. The saving in aisle space goes straight back into racking rows.
2. Height that uses the building. With a dedicated very narrow aisle truck, racking commonly reaches 12-15m, which is where most of the extra pallet positions come from in a high building.
3. Direct access, not block stacking. Every pallet sits on a beam in a normal racking bay, so any pallet can be picked without moving the one in front - unlike a drive-in lane where the last pallet in is the first one out.
4. Specified to your pallet, not to a catalogue. Beam levels, rack depth and load rating are set from your pallet footprint, pallet weight and required lift height.

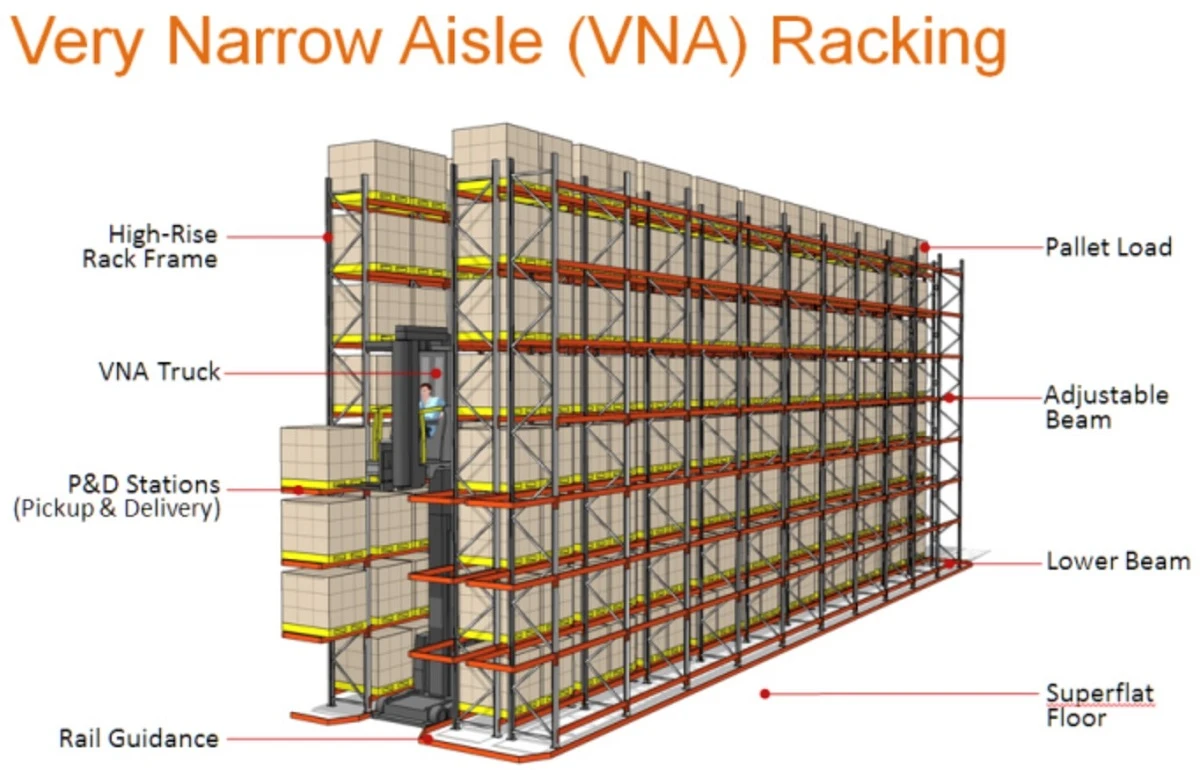

product-1200-770



VNA Pallet Racking VS Selective Pallet Racking



Feature

Very Narrow Aisle Racking

Selective Pallet Racking

Aisle Width

1.6-2.0m, sized to the guided truck

3.5-4.5m for a standard reach truck

Truck Type

Very narrow aisle truck on rail or wire guidance

Counterbalance or standard reach truck

Storage Density

Highest - aisle space is converted into racking rows

Medium - aisle width limits the number of rows

Pallet Access

Direct access to every pallet at every level

Direct access

Floor Requirement

Superflat floor and accurate guidance line required

Standard warehouse floor



Advantage of Very Narrow Aisle Pallet Racking



  • Space Optimisation: a smaller aisle footprint means more racking rows on the same slab, so growth comes from the building you already have rather than from a new one.
  • Scalability: beam levels and rack depth are reconfigurable, so the layout can follow a change of pallet size or product mix.
  • Load Capacity: beam levels are rated per project; tell us the pallet weight and the number of levels and we will return a load table for the bay.
  • Safety: guided trucks travel on a fixed line rather than steering freely in the aisle, which removes most of the frame impact damage seen in conventional layouts.
  • Throughput: a dedicated very narrow aisle truck serves one aisle at height, so lift and travel happen in a single pass instead of a shuttle to the rack face.



Projects

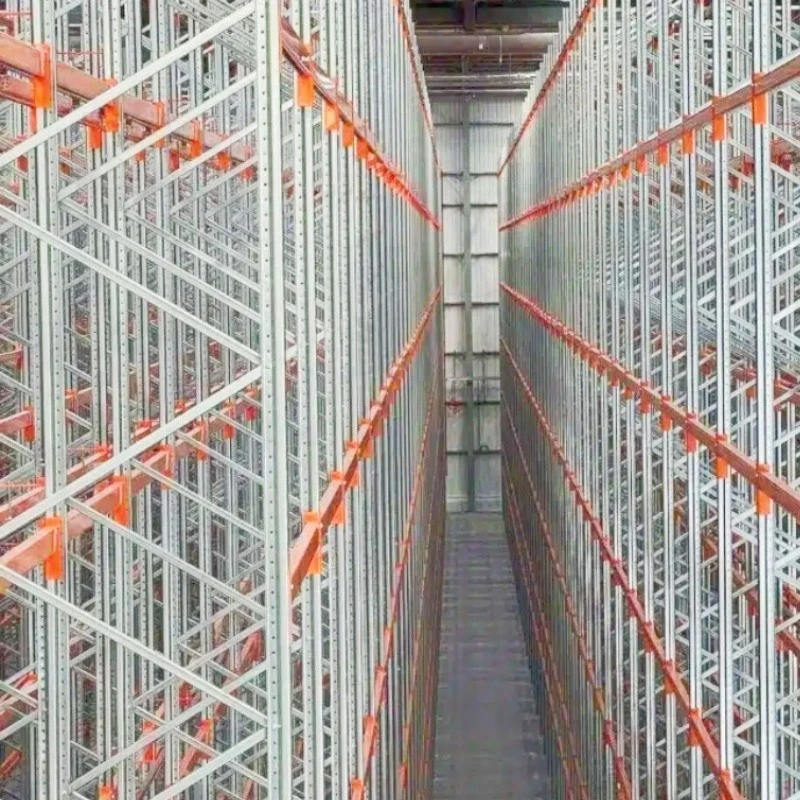

Very narrow aisle pallet racking aisle with white upright frames and beams running to the end of the racking line
Very narrow aisle pallet racking with blue upright frames and orange beams, pallets stored at multiple levels
Galvanised very narrow aisle racking uprights with orange beams forming a narrow aisle three levels high



Packages



Orange plastic pallets stacked and shrink-wrapped on the warehouse floor ready for dispatch
Very narrow aisle racking components wrapped in cardboard and loaded inside a shipping container
Orange steel beams and galvanised decking panels banded onto pallets for shipment



FAQ



Q: Are samples available?

A: Yes. We can send short sections of upright and beam profile free of charge, so you can check the steel gauge and the finish before you commit to a project.

Q: What do you need from me to quote?

A: To price a very narrow aisle racking project accurately, send us these six items:
racking height
beam length
load capacity per level
warehouse drawing
available ceiling height
the very narrow aisle truck you intend to run

Q: Do you provide technical support?

A: Yes. Our engineers design the rack, the rail line and the truck interface as one package, and issue the drawings before production. For a live project, tell us the site address and the truck model and we will confirm what the rack has to suit.
