Shuttle Cart Pallet Racking Systems

Shuttle Cart Pallet Racking Systems store pallets in deep lanes worked by radio shuttle carts, so one aisle serves many pallet positions, engineered per project for FIFO or LIFO.

Product Description



Shuttle Cart Pallet Racking Systems are deep-lane racking worked by a radio shuttle cart: the truck sets the pallet at the aisle face and the cart carries it into the lane.



Key components of shuttle cart racking



1. Shuttle cart - battery-powered carrier running the lane rails, one pallet per trip.
2. High-density racking - deep pallet racking lanes with guide rails fixed the full lane length.
3. WMS or WCS - assigns lane and position and records every cart movement.
4. Charging and transfer stations - where the cart is recharged or lifted between levels.


High-density shuttle cart pallet racking structure with blue uprights and orange beams, built several levels high with palletised goods at the aisle face and guide rails running into the deep lanes



Advantages of shuttle cart pallet racking



  • High density - many pallets deep per lane.
  • Automated lane handling - no truck enters the rack.
  • Modular design for future expansion.
  • Lower labour input - one operator per aisle.
  • Lower operation risk and goods damage.
  • High throughput - the cart works continuously.

Against conventional pallet racking, a deep-lane shuttle system costs more up front and needs cart and rail maintenance, so it suits volume storage.



Projects



Large shuttle cart pallet racking installation with blue uprights and orange beams, deep lanes of pallet racking filled with palletised white bags at the aisle face

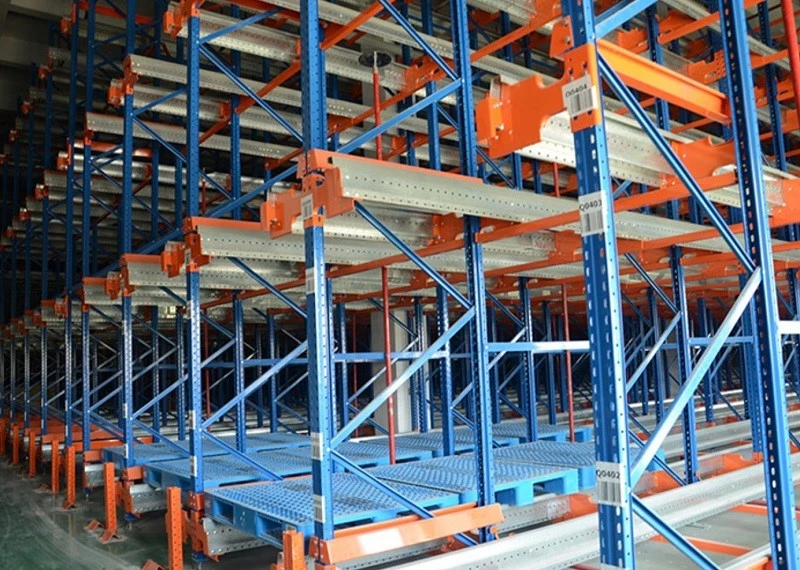

View down an empty deep storage lane of a shuttle cart racking system, blue uprights and orange beam brackets with grey guide rails running the length of the lane and pallets stored in the adjacent lanes

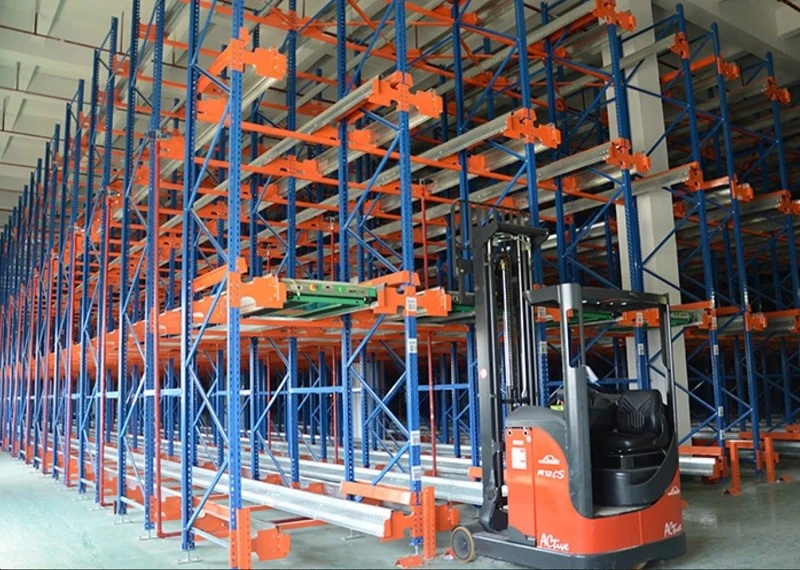

Reach truck parked in front of a shuttle cart pallet racking installation, with the empty front lane rails exposed and the deep racking structure behind



Packages



Stacks of orange plastic crates and foldable boxes stretch-wrapped on pallets in a warehouse aisle, with a forklift working in the background
Palletised cartons wrapped in stretch film and braced with airbags inside a shipping container
Orange steel beams and frame protectors banded and wrapped on pallets alongside stacks of grey wire mesh decking panels in a warehouse



FAQ



Q: How does shuttle cart racking work?

A: Pallets sit on a cart that runs the lane rails to the first free position, so no forklift enters.

Q:Can shuttle racking be used for cold storage ?

A: Yes. Fewer aisles means less refrigerated air and less heat entering each door.

Q:Is it suitable for heavy duty pallets ?

A: Yes, up to 2000kgs per pallet, with the racking specified to the same load.

Q:Does it support FIFO or LIFO?

A: Both. A single-entry lane works LIFO; one open at both ends works FIFO.

Q:What's the difference between drive in racking and shuttle cart racking ?

A: This type achieves FIFO, as the cart moves the pallet through the lane. Drive in is LIFO only and the forklift enters every position.

Q:What's its material ?

A: Q235 or Q355, based on storage needs.

Q: Does the shuttle cart need to be charged ?

A: Yes. The battery carts recharge at an aisle-face station between lane moves.
